    Square Galvanized Steel HVAC Fire Dampers Fireproof Smoke Control Dampers

    Ask Lasest Price
    Brand Name : SX
    Certification : CE,ISO9001
    Price : Negotiation
    Delivery Time : To be negotiated
    Payment Terms : T/T; L/C
    • Product Details
    • Company Profile

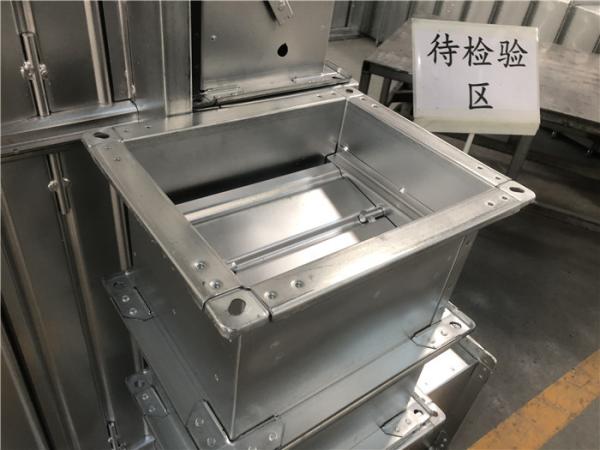

    Square Galvanized Steel HVAC Fire Dampers Fireproof Smoke Control Dampers

    Fire hydrant


    Manual HVAC fire damper , installed in the ventilation or air-conditioning systems, usually it is open, once fire occurs, the gas temperature of duct arrives at high degrees, and then the fuse protector will be fused and the damper will close under the pull of spring. It can meet the requirement of stability and completeness in a certain time. It can insolate smog and fire outside.


    Mechanical dampers shut the cross sectional area of a duct in the event of a fire either by means of pivoting a fire-resistant board (in Europe), or by means of steel shutters, similar to blinds on a window (in North America). In the European designs, the turning mechanism is fully contained, permitting the dampers (subject to type approval) to be grouted in place, which permits a heat sink effect to conduct heat from an accidental building fire, which impinges upon a duct and damper, to be conducted into surrounding structures.


    Fire damper performance parameter table
    Serial numbernameperformance parameters
    1Standard flange specificationsValve long side b or diameter D (mm)Flange side width (mm)
    D≤28020
    280≤D≤630,b≤63025
    630<D1250,630<b≤125030
    1250<D≤2000,1500<b≤250040
    D>2000,2500<b≤400050
    2Temperature sensorvalve static nominal operating temperature 70℃ (valve closes automatically)
    3MaterialValve body2~3mmQ235-A
    Bles2mm708-88 Cold rolled plate
    AxshaftGB905-82 Cold pull round steel Ф12
    Axft sleeveOil-containing metallurgical powder copper sleeve
    4Local resistance coefficientResistance coefficient of ≤ 0.5 at full opening
    5Paint treatmentGround floor rust proof primer (second floor), outer fire proof paint (medium ash steel paint)
    6Rated voltageDC24V±10%
    Rated current0.7A
    Micro switchAC380V,3A
    Torque10~70Kg.f/cm
    Action modeautomatic, electric, manual or 70℃ to close the valve
    7Fire control valveReset method (open state)Manual reset
    Smoke and fire control valveManual reset
    Smoke and fire damperManual reset
    Remote control smoke and fire damperRemote control manual reset
    Automatic reset fire damperElectric reset
    8Air leakageIn the standard state, when the pressure difference on both sides of the valve is 500Pa after the valve is closed, no more than 700mm³/㎡/h

    Square Galvanized Steel HVAC Fire Dampers Fireproof Smoke Control Dampers
